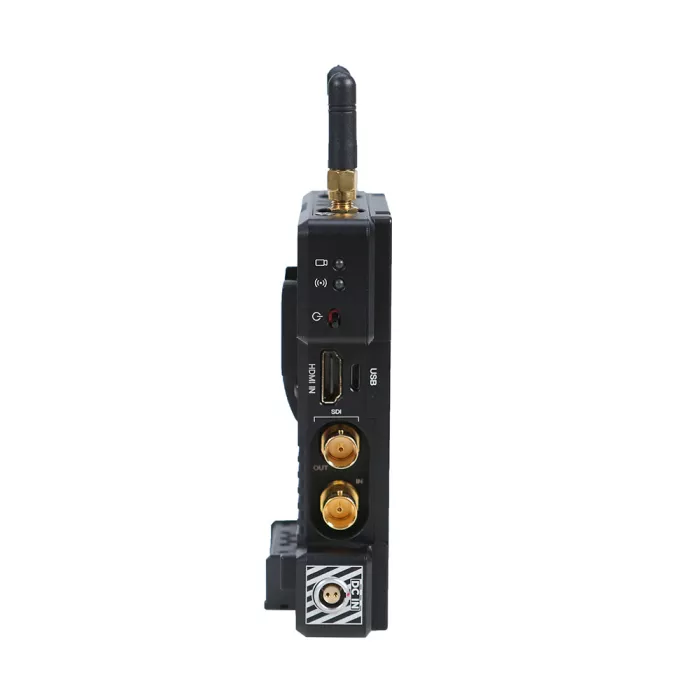

VAXIS STORM 3000DV

• The Storm 3000 transmitter features 20 selectable 40 MHz channels and a 5.1 to 5.9 GHz wireless frequency range, and on the side is a bright LED display showing your connection status and channel information. The unit can be powered using its 2-pin LEMO port using a D-Tap or AC source with a separately available cable. A standard BNC cable is included so you can plug in right out of the box.

• Transmitter unit sends up to 1080p wireless video up to 3000'

• One SDI and one HDMI input; one SDI loop output

• Compatible with all Vaxis Storm receivers

• Dual V-mount pass-through battery plate allows you to power the transmitter and your V-mount camera or device at the same time

• HDMI/SDI cross conversion support

• Metadata, timecode, and timecode trigger support

• Bright LCD screen for settings, status, and scanning for open frequencies on 5.1 to 5.9 GHz range

• Mount on rig using 1/4"-20 thread

Format Support

• Broadcast System Compatibility:  NTSC, PAL

• Video Format: SDI/BNC:  1080p at 23.98, 24, 50, 59.94, 60 fps; 1080PsF at 23.98, 24, 25, 29.97, 30 fps; 1080i at 50, 59.94, 60 fps; 720p at 50, 59.94, 60 fps; 576p at 60 fps/  HDMI: 1080p at 23.98, 24, 50, 59.94, 60 fps; 1080PsF at 23.98, 24, 25, 29.97, 30 fps; 1080i at 50, 59.94, 60 fps; 720p at 50, 59.94, 60 fps; 576p at 60 fps

• Timecode Support:  Yes
